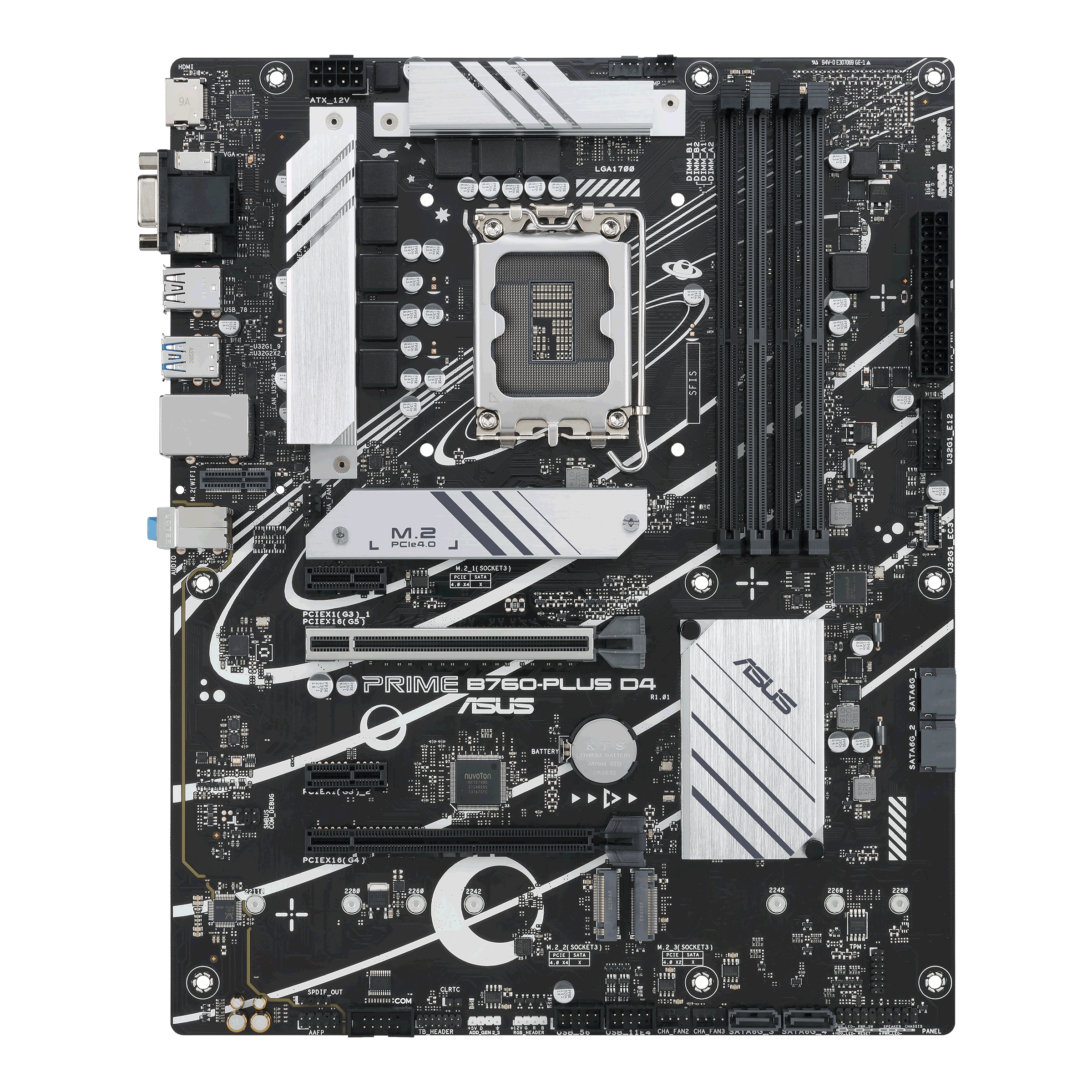

Asus Prime B760-PLUS D4, Intel LGA1700, 2xPCI Express, ATX, 4xDDR4, 3xM.2 + SATA3 RAID, VGA/HDMI/DP, USB-C, 2.5Gbe LAN, Aura Sync RGB
ASUS 90MB1CW0-M0EAY0
ASUS Prime B760-PLUS D4, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI®, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync
• Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
• Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
• Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Art.nr: 8535
Beställningsvara (ber. 2025-10-09)
{$antal} {$enhet} i fjärrlager
1 849 kr
Produktspecifikation
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 2 |
| Antal HDMI | 1 |
| HDMI-version | 2.1 |
| Antal Displayportar | 1 |
| DisplayPort-version | 1.4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 1 |
| Hörlursutgångar | 1 |
| Antal Ethernet (RJ-45) | 1 |
| Antal VGA (D-Sub) | 1 |
| Antal USB 2.0 anslutningar | 2 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
Expansionsplatser
| PCI Express x16 (Gen 4.x) platser | 1 |
| Antal M.2 (M)-platser | 3 |
| PCI Express x1 (Gen 3.x)-kortplatser | 2 |
| PCI Express x16 (Gen 5.x) platser | 1 |
BIOS
| BIOS minnesstorlek | 128 mbit |
| BIOS-typ | UEFI AMI |
Internal I/O
| Antal anslutningar för fläktar | 3 |
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 2 |
| Thunderbolt-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| Antalet COM-anslutningar | 1 |
| Periferiska (Molex) strömkontakter (4-pin) | 1 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 128 GB |
| Minnestyper som stöds | DDR4-SDRAM |
| Minneskanaler | Dual-channel |
| Icke ECC | Ja |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| Wi-Fi | Nej |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1CW0-M0EAY0 |
| Produktlänk | https://www.asus.com/motherboards-components/motherboards/prime/prime-b760-plus-d4/ |
