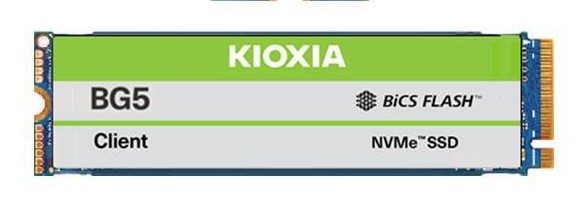

1 TB Kioxia BG5 SSD, M.2 2280 NVMe PCIe 4.0
Kioxia KBG50ZNV1T02
Client SSD
NVMe™ SSD M.2
The KIOXIA BG5 Series is a line-up of compact form factor NVMe™ SSDs with capacities up to 1,024 GB, and leverages a PCIe® 4.0, NVMe™ 1.4 specification compliant interface and KIOXIA 112-layer BiCS FLASH™ 3D TLC (3-bit-per-cell) flash memory. With higher bandwidth, improved flash management and Host Memory Buffer (HMB) technology, BG5 Series SSDs deliver best-in-class read performance for compact form factor SSDs of up to 3,500 MB/s (sequential read) and up to 500K IOPS (random read), with active power consumption of up to 4.3 W (Typ.)*.
KIOXIA BG5 Series SSDs are available in capacities of 256 GB, 512 GB and 1,024 GB in M.2 Type 2230 and Type 2280 module form factors, making them suitable for thin and light system designs, such as ultra-thin PCs, embedded devices and server boot in data centers. The KIOXIA BG5 Series offers a Self-Encrypting Drive (SED) model option, supporting TCG Opal Version 2.01.
NVMe™ SSD M.2
The KIOXIA BG5 Series is a line-up of compact form factor NVMe™ SSDs with capacities up to 1,024 GB, and leverages a PCIe® 4.0, NVMe™ 1.4 specification compliant interface and KIOXIA 112-layer BiCS FLASH™ 3D TLC (3-bit-per-cell) flash memory. With higher bandwidth, improved flash management and Host Memory Buffer (HMB) technology, BG5 Series SSDs deliver best-in-class read performance for compact form factor SSDs of up to 3,500 MB/s (sequential read) and up to 500K IOPS (random read), with active power consumption of up to 4.3 W (Typ.)*.
KIOXIA BG5 Series SSDs are available in capacities of 256 GB, 512 GB and 1,024 GB in M.2 Type 2230 and Type 2280 module form factors, making them suitable for thin and light system designs, such as ultra-thin PCs, embedded devices and server boot in data centers. The KIOXIA BG5 Series offers a Self-Encrypting Drive (SED) model option, supporting TCG Opal Version 2.01.
1 024 GB
Art.nr: 8243
Beställningsvara
2 390 kr
2,33 kr / GB
Produktspecifikation
Prestanda
Storlek | 1024 GB |
Läshastighet | 3500 MB/s |
Skrivhastighet | 2900 MB/s |
Slumpvis läsning (4kB) | 500 IOPS |
Slumpvis skrivning (4kB) | 450 IOPS |
Gränssnitt | PCI Express 4.0 |
NVMe | Ja |
Miljökrav
Temperaturintervall (förvaring) | -40 - 85 ° C |
Temperatur vid drift | 0 - 95 ° C |
Stötar vid drift | 1500 G |
Strömtillförsel
Strömförbrukning (max) | 4,3 W |
Vikt & dimension
Bredd | 22 mm |
Djup | 80 mm |
Höjd | 2,23 mm |
Vikt | 6 g |
Egenskaper
SSD-diskens formfaktor | M.2 2280 |
Minnestyp | BiCS FLASH TLC |
Fabrikat
Tillverkare | Kioxia |
SKU | KBG50ZNV1T02 |
Prestanda
Storlek | 1024 GB |
Läshastighet | 3500 MB/s |
Skrivhastighet | 2900 MB/s |
Slumpvis läsning (4kB) | 500 IOPS |
Slumpvis skrivning (4kB) | 450 IOPS |
Gränssnitt | PCI Express 4.0 |
NVMe | Ja |
Miljökrav
Temperaturintervall (förvaring) | -40 - 85 ° C |
Temperatur vid drift | 0 - 95 ° C |
Stötar vid drift | 1500 G |
Strömtillförsel
Strömförbrukning (max) | 4,3 W |
Vikt & dimension
Bredd | 22 mm |
Djup | 80 mm |
Höjd | 2,23 mm |
Vikt | 6 g |
Egenskaper
SSD-diskens formfaktor | M.2 2280 |
Minnestyp | BiCS FLASH TLC |
Fabrikat
Tillverkare | Kioxia |
SKU | KBG50ZNV1T02 |
