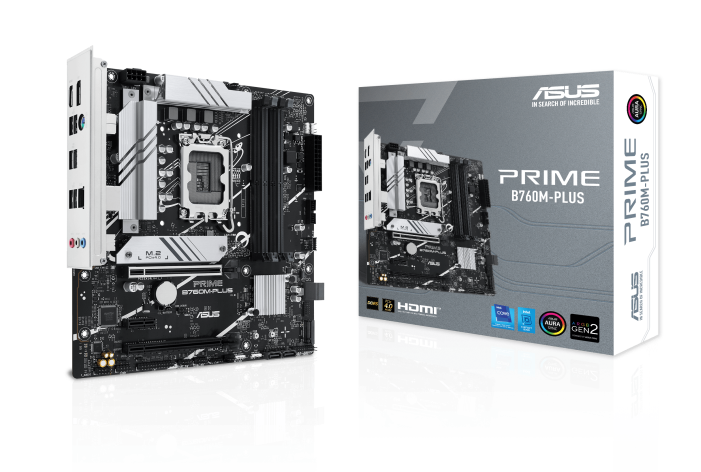

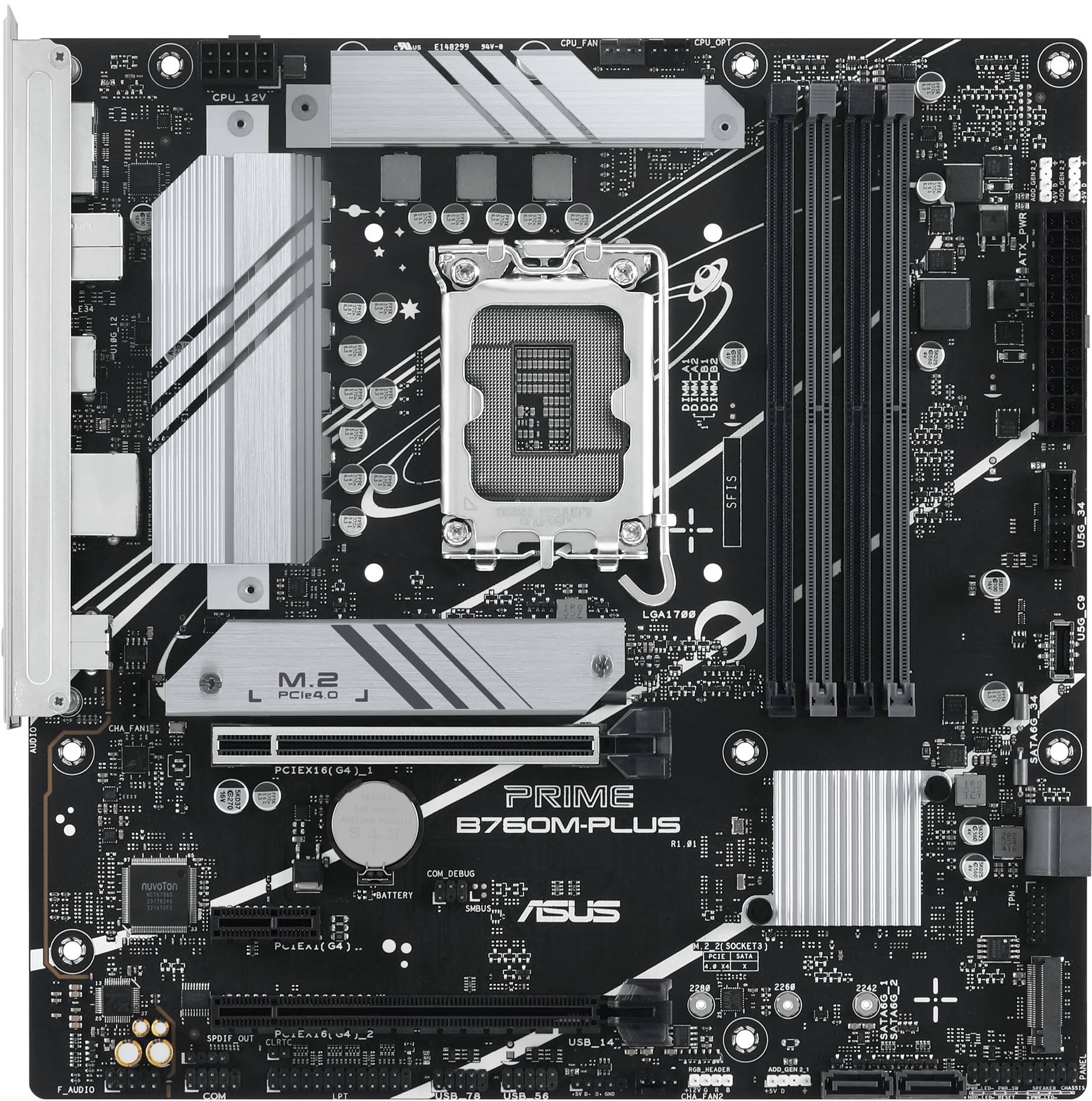

Asus Prime B760M-PLUS, Intel LGA1700, PCI Express, MicroATX, 4xDDR4, 2xM.2 + SATA3 RAID, HDMI/DP, USB 3.2, 2.5Gbe LAN, Aura Sync RGB
ASUS 90MB1GY0-M0EAY0
Intel® B760 (LGA 1700) micro-ATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, rear USB 10Gbps, front USB 5Gbps Type-C®, Aura Sync
• Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps, front USB 5Gbps Type-C®
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
• Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps, front USB 5Gbps Type-C®
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
Art.nr: 7944
Beställningsvara (ber. 2025-10-20)
1 749 kr
Produktspecifikation
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 2 |
| Antal HDMI | 1 |
| Antal Displayportar | 1 |
| Uttag för mikrofon/linje in | Ja |
| Antal Ethernet (RJ-45) | 1 |
| Antal USB 2.0 anslutningar | 4 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | micro ATX |
| Moderkortets chipset | Intel B760 |
Expansionsplatser
| PCI Express x16 (Gen 4.x) platser | 2 |
| Antal M.2 (M)-platser | 2 |
BIOS
| BIOS minnesstorlek | 128 mbit |
| BIOS-typ | UEFI AMI |
Internal I/O
| Antal anslutningar för fläktar | 2 |
| USB 2.0 anslutning | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 2 |
| Antal SATA III kontakter | 4 |
| Antalet COM-anslutningar | 1 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 192 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minneskanaler | Dubbla kanaler |
| Icke ECC | Ja |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| Wi-Fi | Nej |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Vikt & dimension
| Bredd | 244 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1GY0-M0EAY0 |
| Produktlänk | https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-plus/ |
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 2 |
| Antal HDMI | 1 |
| Antal Displayportar | 1 |
| Uttag för mikrofon/linje in | Ja |
| Antal Ethernet (RJ-45) | 1 |
| Antal USB 2.0 anslutningar | 4 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | micro ATX |
| Moderkortets chipset | Intel B760 |
Expansionsplatser
| PCI Express x16 (Gen 4.x) platser | 2 |
| Antal M.2 (M)-platser | 2 |
BIOS
| BIOS minnesstorlek | 128 mbit |
| BIOS-typ | UEFI AMI |
Internal I/O
| Antal anslutningar för fläktar | 2 |
| USB 2.0 anslutning | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 2 |
| Antal SATA III kontakter | 4 |
| Antalet COM-anslutningar | 1 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 192 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minneskanaler | Dubbla kanaler |
| Icke ECC | Ja |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet |
| Wi-Fi | Nej |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Vikt & dimension
| Bredd | 244 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1GY0-M0EAY0 |
| Produktlänk | https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-plus/ |
