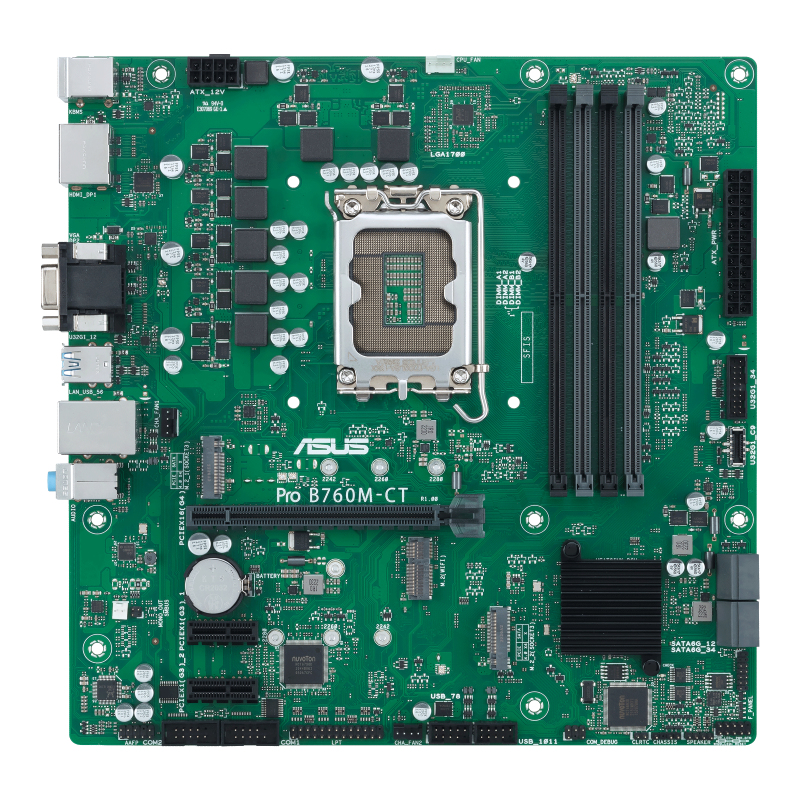

Asus Pro B760M-CT-CSM, Intel LGA1700, PCI Express, MicroATX, 4xDDR5, 2xM.2 + SATA3 RAID, VGA/HDMI/2xDP, USB-C (front), GigaLAN
ASUS 90MB1DY0-M0EAYC
Micro-ATX B760 business motherboard with enhanced security, reliability and manageability and serviceability
• Intel® LGA 1700 socket: Ready for 13th Gen Intel Core™ processors
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®
• Intel® LGA 1700 socket: Ready for 13th Gen Intel Core™ processors
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast connectivity: PCIe 4.0, DDR5, front USB 3.2 Gen 1 Type-C®
Art.nr: 7584
Beställningsvara (ber. 2025-10-09)
{$antal} {$enhet} i fjärrlager
1 990 kr
Produktspecifikation
Anslutningsmöjligheter
| Antal HDMI | 1 |
| HDMI-version | 2.1 |
| Antal Displayportar | 2 |
| DisplayPort-version | 1.4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 2 |
| Uttag för mikrofon/linje in | Ja |
| Hörlursutgångar | 1 |
| Antal Ethernet (RJ-45) | 1 |
| Antal VGA (D-Sub) | 1 |
| Antal USB 2.0 anslutningar | 2 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | micro ATX |
| Moderkortets chipset | Intel B760 |
Expansionsplatser
| PCI Express x16 (Gen 4.x) platser | 1 |
| Antal M.2 (M)-platser | 2 |
| PCI Express x1 (Gen 3.x)-kortplatser | 2 |
BIOS
| BIOS minnesstorlek | 128 mbit |
Internal I/O
| Antal anslutningar för fläktar | 2 |
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 2 |
| Antal SATA III kontakter | 4 |
| Antalet COM-anslutningar | 3 |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 128 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minneskanaler | Dubbla kanaler |
| Icke ECC | Ja |
Nätverk
| Typ av ethernet-gränssnitt | Gigabit Ethernet |
| Wi-Fi | Ja |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Vikt & dimension
| Bredd | 244 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1DY0-M0EAYC |
| Produktlänk | https://www.asus.com/motherboards-components/motherboards/business/pro-b760m-ct-csm/ |
Anslutningsmöjligheter
| Antal HDMI | 1 |
| HDMI-version | 2.1 |
| Antal Displayportar | 2 |
| DisplayPort-version | 1.4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 2 |
| Uttag för mikrofon/linje in | Ja |
| Hörlursutgångar | 1 |
| Antal Ethernet (RJ-45) | 1 |
| Antal VGA (D-Sub) | 1 |
| Antal USB 2.0 anslutningar | 2 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | micro ATX |
| Moderkortets chipset | Intel B760 |
Expansionsplatser
| PCI Express x16 (Gen 4.x) platser | 1 |
| Antal M.2 (M)-platser | 2 |
| PCI Express x1 (Gen 3.x)-kortplatser | 2 |
BIOS
| BIOS minnesstorlek | 128 mbit |
Internal I/O
| Antal anslutningar för fläktar | 2 |
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 2 |
| Antal SATA III kontakter | 4 |
| Antalet COM-anslutningar | 3 |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 128 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minneskanaler | Dubbla kanaler |
| Icke ECC | Ja |
Nätverk
| Typ av ethernet-gränssnitt | Gigabit Ethernet |
| Wi-Fi | Ja |
Processor
| Processorsockel | LGA 1700 |
| Processortillverkare | Intel |
Vikt & dimension
| Bredd | 244 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1DY0-M0EAYC |
| Produktlänk | https://www.asus.com/motherboards-components/motherboards/business/pro-b760m-ct-csm/ |
