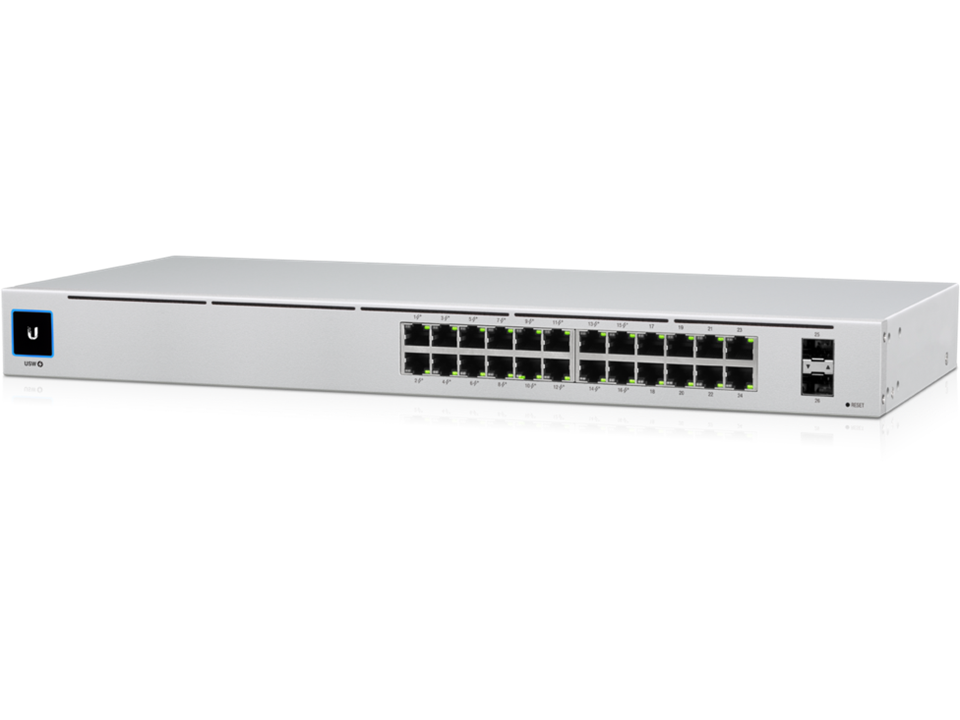

Ubiquiti Networks UniFi USW-24-POE, 24-port Gigabit med 16xPoE++, 2 SFP, 95W
Ubiquiti Networks USW-24-POE
The Switch 24 PoE (USW 24 PoE) is a fully managed switch with (24) GbE RJ45 ports, including (16) GbE, 802.3at PoE+ ports, and (2) 1G SFP ports. The versatile USW 24 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network. The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, with its 7.9" depth, it's easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
• (1) 1.3" LCM color touchscreen with AR switch management
• (16) GbE, 802.3at PoE+ RJ45 ports
• (8) GbE RJ45 ports
• (2) 1G SFP ports
• 95W total PoE supply
• Fanless, silent cooling
Additionally, with its 7.9" depth, it's easy to mount this compact, fanless switch in a SOHO rack cabinet. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
• (1) 1.3" LCM color touchscreen with AR switch management
• (16) GbE, 802.3at PoE+ RJ45 ports
• (8) GbE RJ45 ports
• (2) 1G SFP ports
• 95W total PoE supply
• Fanless, silent cooling
24 port
Art.nr: 6705
Beställningsvara (ber. 2025-10-31)
{$antal} {$enhet} i fjärrlager
4 990 kr
207,92 kr / port
Produktspecifikation
Anslutningar
| Antal RJ-45 | 24 |
| Typ av Ethernet-portar | Gigabit Ethernet (10/100/1000) |
| Antal SFP-modulplatser | 2 |
Data transmission
| Jumbo Frames stöd | Ja |
| Switch kapacitet | 52 Gbit/s |
| Hastighet vid vidarebefordran | 38,69 Mpps |
| Genomströmning | 26000 Mpps |
Design
| Produktens färg | Silver |
| Rackmontering | Ja |
| Formfaktor | 1U |
Management features
| Switch lager | L2/L3 |
| Switch typ | hanterad |
Nätverk
| Full duplex | Ja |
| Auto MDI / MDI-X | Ja |
| STP (Spanning Tree Protocol) | Ja |
| VLAN-stöd | Ja |
Power over Ethernet (PoE)
| Power over Ethernet (PoE)-effekt per port | 32 W |
| Strömförsörjning via Ethernet (PoE) stöd | Ja |
| Antal Power over Ethernet plus (PoE +)-portar | 16 |
| Total Power over Ethernet (PoE)-budget | 92 W |
Miljökrav
| Intervall för relativ operativ luftfuktighet | 10 - 90% |
| Temperatur vid drift | -5 - 40 ° C |
Vikt & dimension
| Bredd | 442,4 mm |
| Djup | 200 mm |
| Vikt | 3 kg |
| Höjd | 43,7 mm |
Fabrikat
| Tillverkare | Ubiquiti Networks |
| SKU | USW-24-POE |
| Produktlänk | https://store.ui.com/collections/unifi-network-switching/products/usw-24-poe |
Anslutningar
| Antal RJ-45 | 24 |
| Typ av Ethernet-portar | Gigabit Ethernet (10/100/1000) |
| Antal SFP-modulplatser | 2 |
Data transmission
| Jumbo Frames stöd | Ja |
| Switch kapacitet | 52 Gbit/s |
| Hastighet vid vidarebefordran | 38,69 Mpps |
| Genomströmning | 26000 Mpps |
Design
| Produktens färg | Silver |
| Rackmontering | Ja |
| Formfaktor | 1U |
Management features
| Switch lager | L2/L3 |
| Switch typ | hanterad |
Nätverk
| Full duplex | Ja |
| Auto MDI / MDI-X | Ja |
| STP (Spanning Tree Protocol) | Ja |
| VLAN-stöd | Ja |
Power over Ethernet (PoE)
| Power over Ethernet (PoE)-effekt per port | 32 W |
| Strömförsörjning via Ethernet (PoE) stöd | Ja |
| Antal Power over Ethernet plus (PoE +)-portar | 16 |
| Total Power over Ethernet (PoE)-budget | 92 W |
Miljökrav
| Intervall för relativ operativ luftfuktighet | 10 - 90% |
| Temperatur vid drift | -5 - 40 ° C |
Vikt & dimension
| Bredd | 442,4 mm |
| Djup | 200 mm |
| Vikt | 3 kg |
| Höjd | 43,7 mm |
Fabrikat
| Tillverkare | Ubiquiti Networks |
| SKU | USW-24-POE |
| Produktlänk | https://store.ui.com/collections/unifi-network-switching/products/usw-24-poe |
