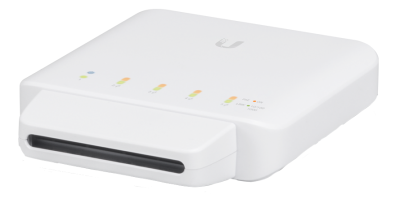

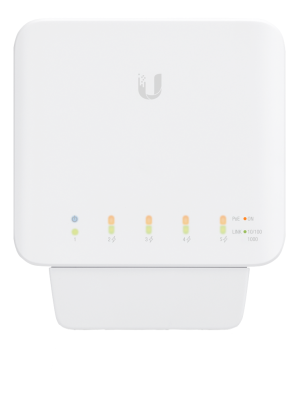

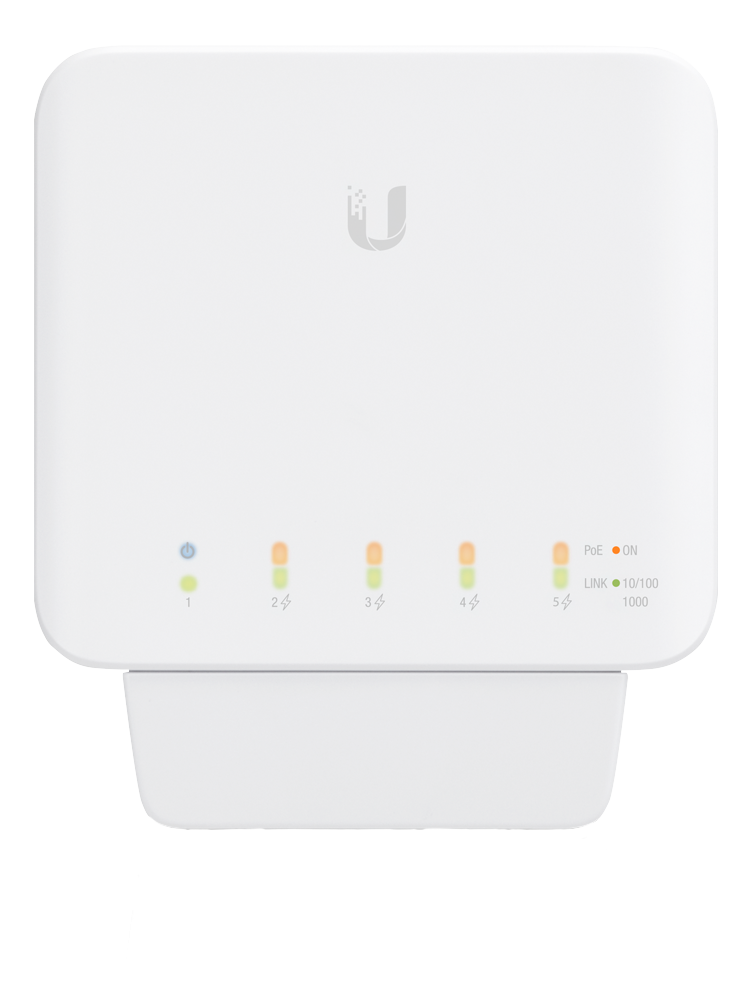

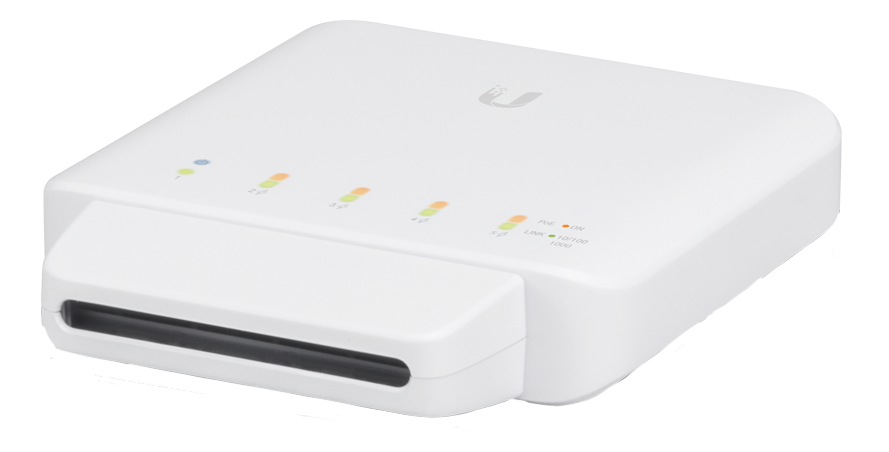

Ubiquiti Networks UniFi Flex, 5-port Gigabit
Ubiquiti Networks USW-FLEX
5-Port Layer 2 Gigabit Switch with PoE Support
The UniFi® Switch Flex is a managed, Layer 2 Gigabit switch with auto-sensing 802.3af PoE support.
PoE Flexibility

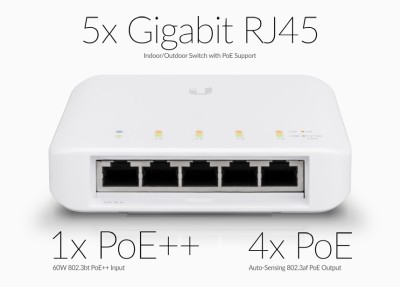

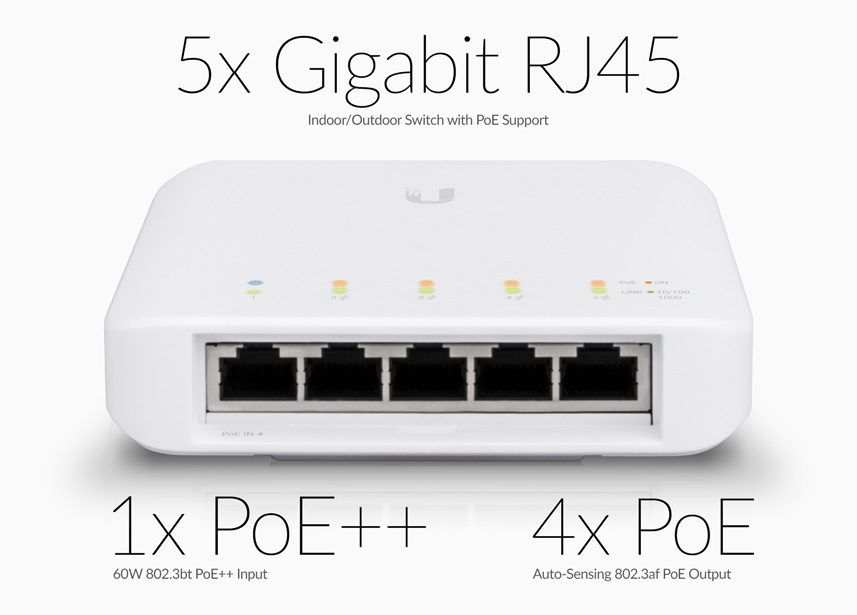

The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.
Versatile Mounting

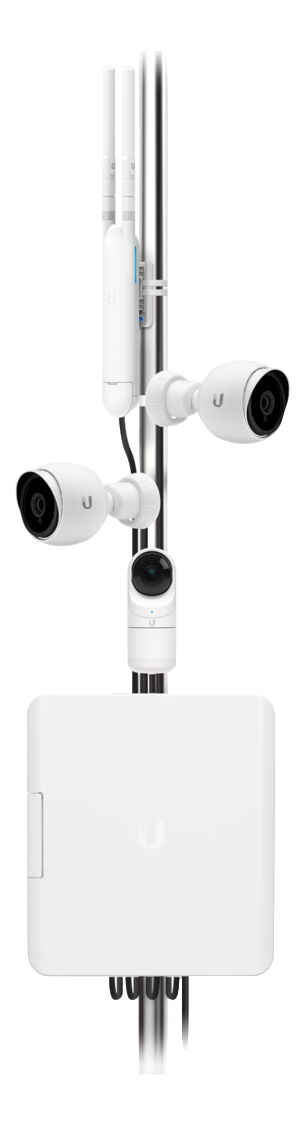

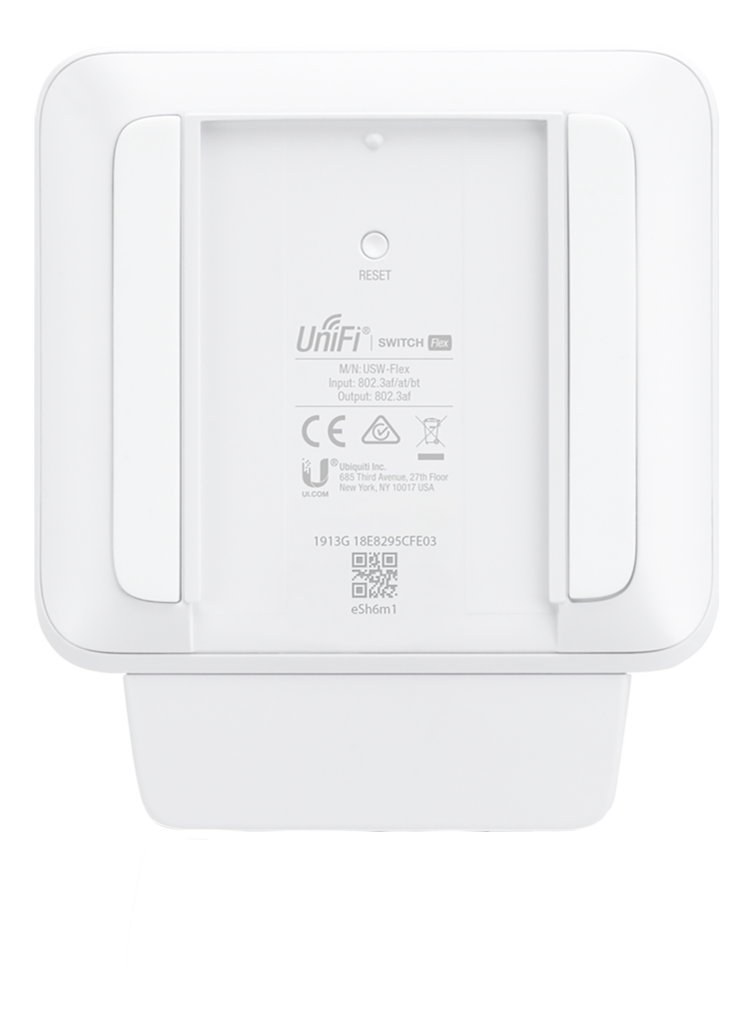

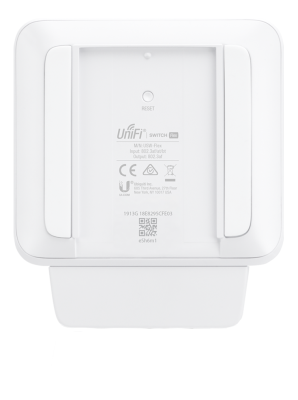

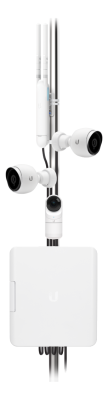

The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.
Indoor/Outdoor Design
The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations.
Compatible Products
The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial, US-XG-6POE, USW-Pro-24-PoE or USW-Pro-48-PoE switches, which provide 60W of 802.3bt PoE++.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
The UniFi® Switch Flex is a managed, Layer 2 Gigabit switch with auto-sensing 802.3af PoE support.
PoE Flexibility
The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.
Versatile Mounting
The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.
Indoor/Outdoor Design
The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations.
Compatible Products
The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial, US-XG-6POE, USW-Pro-24-PoE or USW-Pro-48-PoE switches, which provide 60W of 802.3bt PoE++.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
5 port
Art.nr: 6695
{$antal} {$enhet} på väg till butikslager (ber. 2025-10-07)
{$antal} {$enhet} i fjärrlager
1 449 kr
289,80 kr / port
Produktspecifikation
Anslutningar
Antal RJ-45 | 5 |
Typ av Ethernet-portar | Gigabit Ethernet (10/100/1000) |
Data transmission
Jumbo Frames stöd | Ja |
Design
Produktens färg | Vit |
Rackmontering | Nej |
Management features
Switch lager | L2 |
Switch typ | hanterad |
Nätverk
10G stöd | Nej |
Full duplex | Ja |
Auto MDI / MDI-X | Ja |
VLAN-stöd | Ja |
Power over Ethernet (PoE)
Strömförsörjning via Ethernet (PoE) stöd | Ja |
Power over Ethernet (PoE)-portar kvantitet | 4 |
Miljökrav
Intervall för relativ operativ luftfuktighet | 5 - 95% |
Temperatur vid drift | -40 - 55 ° C |
Vikt & dimension
Bredd | 122,5 mm |
Djup | 107,1 mm |
Vikt | 230 g |
Höjd | 28 mm |
Fabrikat
Tillverkare | Ubiquiti Networks |
SKU | USW-FLEX |
Produktlänk | https://www.ui.com/unifi-switching/unifi-switch-flex/ |
