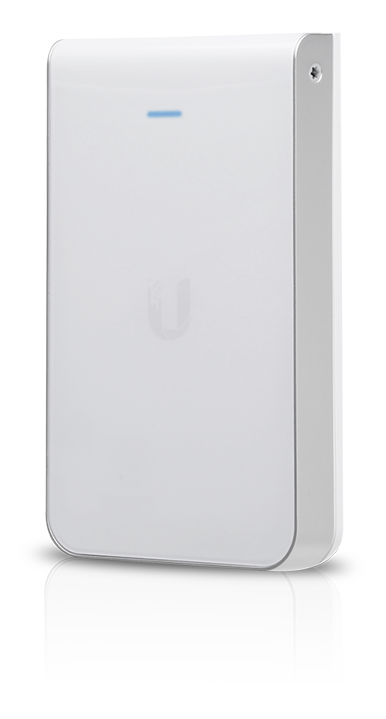

Ubiquiti Networks UniFi AC In-Wall HD, Wireless AC1733, PoE+, 4-port Gigabit-switch
Ubiquiti Networks UAP-IW-HD
802.11ac 4x4 MIMO access point with 4-port Gigabit Ethernet switch for high-density environments. Fits into wall outlet.
The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser and the UniFi app (iOS or AndroidTM), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Features:
• 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2 MIMO on 2.4GHz (300Mbps max PHY rate)
• 802.3af for base functionality. 802.3at required if using PoE passthrough
• 1x4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE passthrough (port 1 only)
The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser and the UniFi app (iOS or AndroidTM), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Features:
• 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2 MIMO on 2.4GHz (300Mbps max PHY rate)
• 802.3af for base functionality. 802.3at required if using PoE passthrough
• 1x4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE passthrough (port 1 only)
Art.nr: 6658
Beställningsvara (ber. 2025-11-03)
{$antal} {$enhet} i fjärrlager
2 690 kr
Produktspecifikation
Anslutningar
| Antal Ethernet (RJ-45) | 5 |
| Antal interna RJ-45-portar | 1 |
Egenskaper
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| Datahastighet för Ethernet-LAN | 10,100,1000 Mbit/s |
| Kommunikationsstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| Maximal dataöverföringshastighet | 1733 Mbit/s |
| MIMO | Ja |
| MIMO-typ | Multi User MIMO |
| Överföringseffekt | 26 dBmW |
| Frekvensband | 2.4/5 GHz |
Antenn
| Antal antenner | 4 |
| Antennförstärkning | 6 dBi |
| Antennfunktioner | Integrerad antenn |
Bevakning
| Kryptering/säkerhet | WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-EAP, WPA2-TKIP |
Design
| placering | Vägg |
| Produktens färg | Vit |
Miljökrav
| Temperatur vid drift | -10 - 60 ° C |
| Relativ luftfuktighet vid drift | 5 - 95% |
Management features
| Webbaserad adminstraion | Ja |
Förpackningens innehåll
| Monteringssats | Ja |
| Antal per förpackning | 1 styck |
Vikt & dimension
| Bredd | 86,7 mm |
| Djup | 25,8 mm |
| Höjd | 139,7 mm |
| Vikt | 210 g |
Fabrikat
| Tillverkare | Ubiquiti Networks |
| SKU | UAP-IW-HD |
| Produktlänk | https://store.ui.com/collections/unifi-network-access-points/products/unifi-in-wall-hd |
Anslutningar
| Antal Ethernet (RJ-45) | 5 |
| Antal interna RJ-45-portar | 1 |
Egenskaper
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| Datahastighet för Ethernet-LAN | 10,100,1000 Mbit/s |
| Kommunikationsstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| Maximal dataöverföringshastighet | 1733 Mbit/s |
| MIMO | Ja |
| MIMO-typ | Multi User MIMO |
| Överföringseffekt | 26 dBmW |
| Frekvensband | 2.4/5 GHz |
Antenn
| Antal antenner | 4 |
| Antennförstärkning | 6 dBi |
| Antennfunktioner | Integrerad antenn |
Bevakning
| Kryptering/säkerhet | WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-EAP, WPA2-TKIP |
Design
| placering | Vägg |
| Produktens färg | Vit |
Miljökrav
| Temperatur vid drift | -10 - 60 ° C |
| Relativ luftfuktighet vid drift | 5 - 95% |
Management features
| Webbaserad adminstraion | Ja |
Förpackningens innehåll
| Monteringssats | Ja |
| Antal per förpackning | 1 styck |
Vikt & dimension
| Bredd | 86,7 mm |
| Djup | 25,8 mm |
| Höjd | 139,7 mm |
| Vikt | 210 g |
Fabrikat
| Tillverkare | Ubiquiti Networks |
| SKU | UAP-IW-HD |
| Produktlänk | https://store.ui.com/collections/unifi-network-access-points/products/unifi-in-wall-hd |
