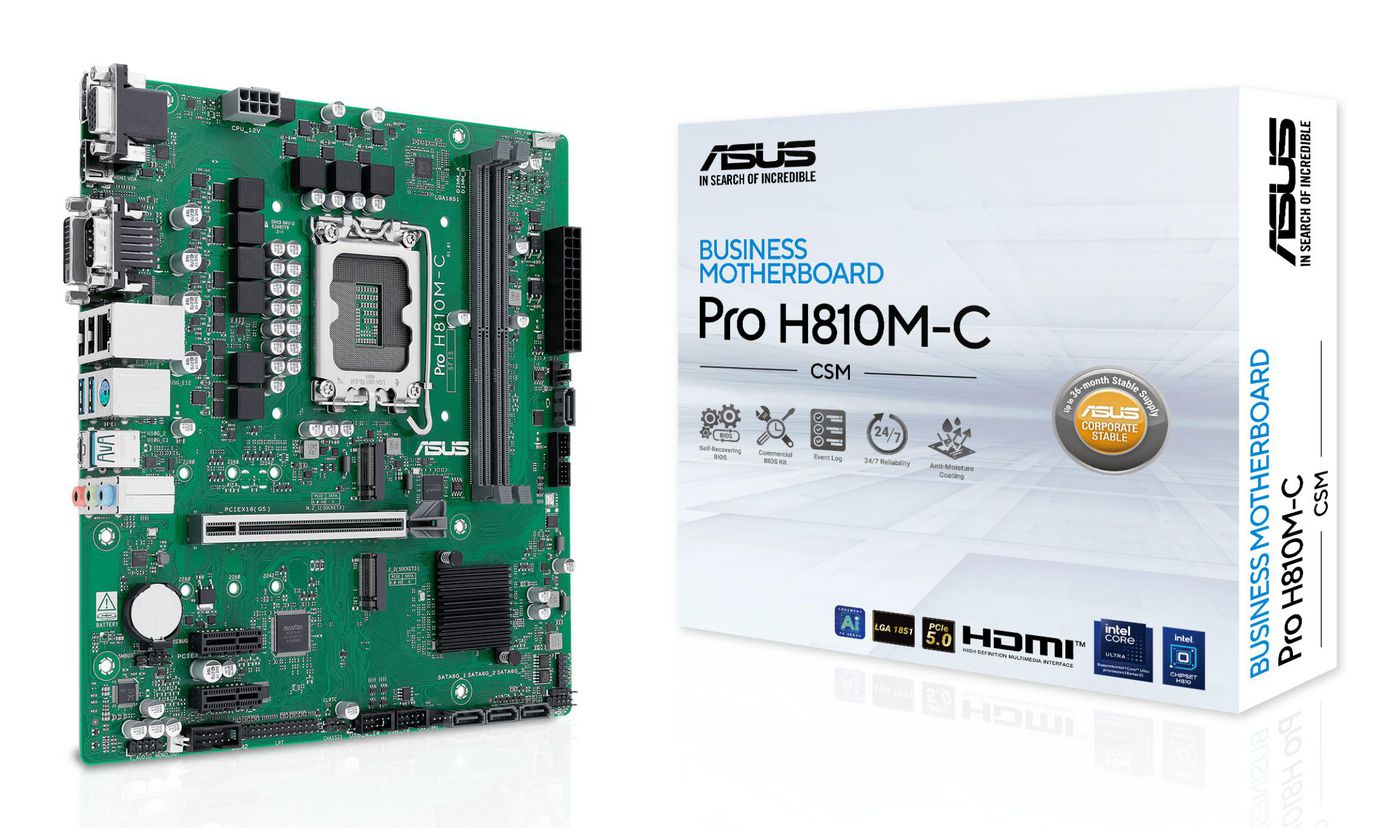

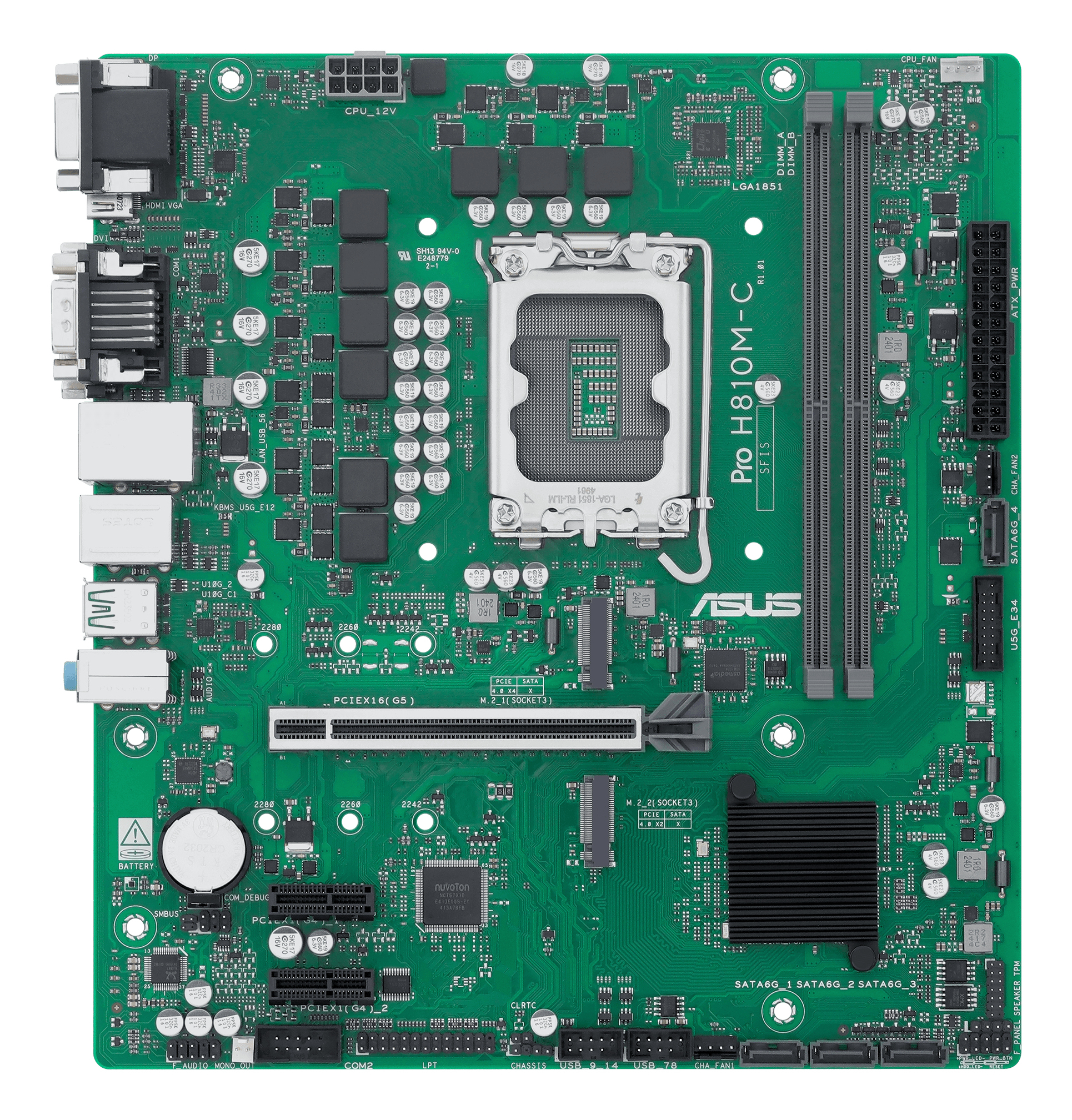

Asus PRO H810M-C-CSM, Intel LGA1851, MicroATX, 2xDDR5, PCI Express, 2xM.2 + SATA3, VGA/DVI/HDMI/DP, USB-C, GigaLAN, Aura Sync RGB
ASUS 90MB1KHP-M0EAYC
Micro-ATX H810 business motherboard with enhanced security, reliability, manageability and serviceability
• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
• ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced System Security: Self-recovering BIOS to safeguard PCs
• Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
• Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast Connectivity: PCIe 5.0 slot, two PCIe 4.0 M.2 slots, DDR5, rear USB 10Gbps Type-A and Type-C®
• DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
• ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced System Security: Self-recovering BIOS to safeguard PCs
• Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
• Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast Connectivity: PCIe 5.0 slot, two PCIe 4.0 M.2 slots, DDR5, rear USB 10Gbps Type-A and Type-C®
• DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
Art.nr: 22259
Beställningsvara
1 699 kr
Produktspecifikation

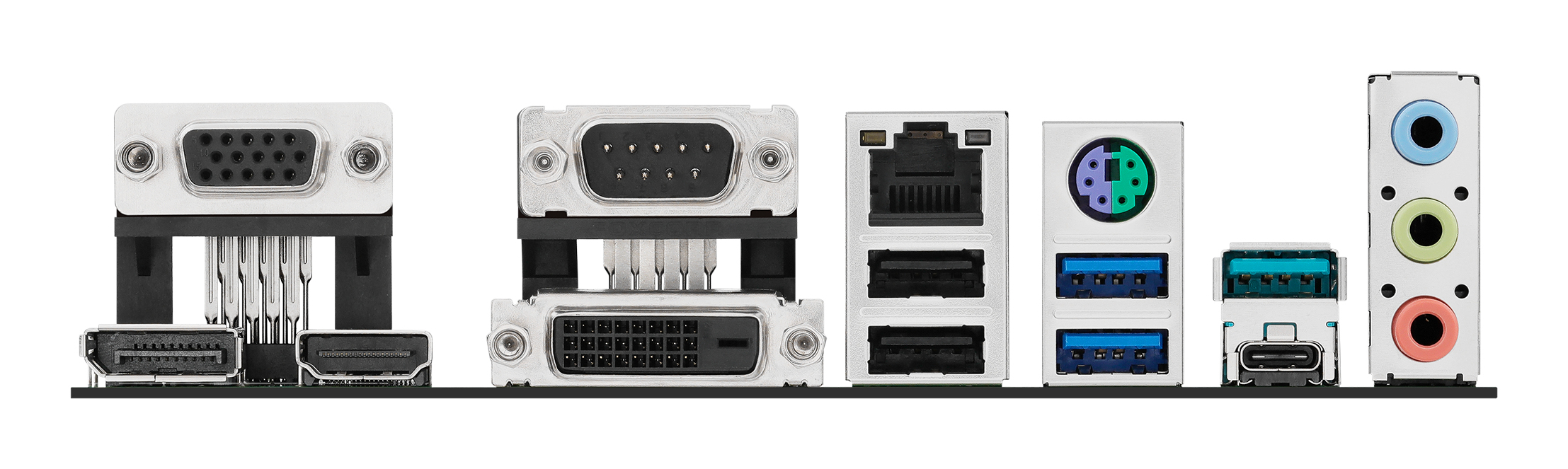

Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 1 |
| Antal Displayportar | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 2 |
| Antal USB 2.0 anslutningar | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar | 1 |
| Antal HDMI-portar | 1 |
| Antal LAN (RJ-45) anslutningar | 1 |
| Antal PS/2-portar | 1 |
| Antal VGA (D-Sub) | 1 |
| Antal DVI-D anslutningar | 1 |
| Antal COM portar | 1 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | micro ATX |
| Moderkortets chipset | Intel H810 |
Expansionsplatser
| PCI Express x16 (Gen 5.x) platser | 1 |
| PCI Express x1 (Gen 4.x) platser | 2 |
| Antal M.2 (M)-platser | 2 |
| 1:a M.2 högsta PCI Express-generation | 4.0 |
| 1:a M.2 största nyckelstorlek | 2280 |
| 2:a M.2 högsta PCI Express-generation | 4.0 |
| 2:a M.2 största nyckelstorlek | 2280 |
Grafiken
| Stöd för parallellprocessteknik | Stöds inte |
Internal I/O
| Antal anslutningar för fläktar | 2 |
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| Antalet COM-anslutningar | 1 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 2 |
| Maximalt internminne | 128 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minneskanaler | Dubbla kanaler |
Nätverk
| Typ av ethernet-gränssnitt | Gigabit Ethernet |
| Wi-Fi | Nej |
Processor
| Processorsockel | LGA 1851 (Socket V1) |
| Processortillverkare | Intel |
Lagringskontroll
| Lagringsenhetsgränssnitt som stöds | M.2, SATA III |
| Antal lagringsenheter som stöds | 6 |
| Antalet hårddiskar som stöds | 4 |
Vikt & dimension
| Bredd | 244 mm |
| Djup | 222 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1KHP-M0EAYC |
| Produktlänk | https://www.asus.com/se/motherboards-components/motherboards/business/pro-h810m-c-csm/ |
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 1 |
| Antal Displayportar | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar | 2 |
| Antal USB 2.0 anslutningar | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar | 1 |
| Antal HDMI-portar | 1 |
| Antal LAN (RJ-45) anslutningar | 1 |
| Antal PS/2-portar | 1 |
| Antal VGA (D-Sub) | 1 |
| Antal DVI-D anslutningar | 1 |
| Antal COM portar | 1 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | micro ATX |
| Moderkortets chipset | Intel H810 |
Expansionsplatser
| PCI Express x16 (Gen 5.x) platser | 1 |
| PCI Express x1 (Gen 4.x) platser | 2 |
| Antal M.2 (M)-platser | 2 |
| 1:a M.2 högsta PCI Express-generation | 4.0 |
| 1:a M.2 största nyckelstorlek | 2280 |
| 2:a M.2 högsta PCI Express-generation | 4.0 |
| 2:a M.2 största nyckelstorlek | 2280 |
Grafiken
| Stöd för parallellprocessteknik | Stöds inte |
Internal I/O
| Antal anslutningar för fläktar | 2 |
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| Antal SATA III kontakter | 4 |
| Antalet COM-anslutningar | 1 |
| TPM-anslutning | Ja |
Minne
| Antal minnesplatser | 2 |
| Maximalt internminne | 128 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minneskanaler | Dubbla kanaler |
Nätverk
| Typ av ethernet-gränssnitt | Gigabit Ethernet |
| Wi-Fi | Nej |
Processor
| Processorsockel | LGA 1851 (Socket V1) |
| Processortillverkare | Intel |
Lagringskontroll
| Lagringsenhetsgränssnitt som stöds | M.2, SATA III |
| Antal lagringsenheter som stöds | 6 |
| Antalet hårddiskar som stöds | 4 |
Vikt & dimension
| Bredd | 244 mm |
| Djup | 222 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1KHP-M0EAYC |
| Produktlänk | https://www.asus.com/se/motherboards-components/motherboards/business/pro-h810m-c-csm/ |
