Systemswitch Startech.com D86A2-2-PORT-8K-KVM, 2-vägs KVM, Displayport 8K@60Hz / 4K@144Hz, USB, ljud

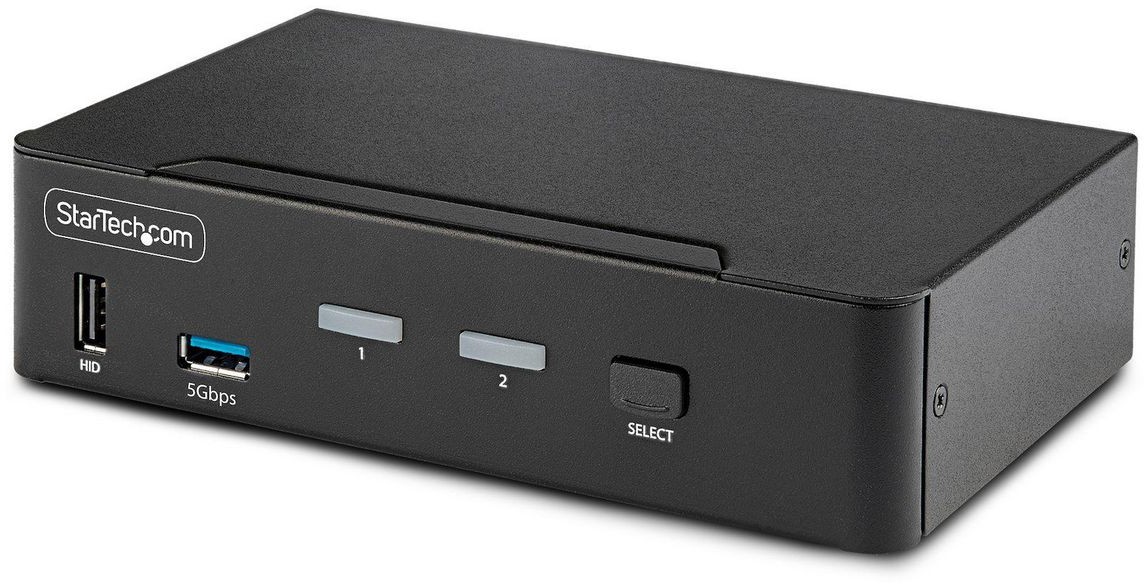

StarTech.com D86A2-2-PORT-8K-KVM
2-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0 Ports, 4x USB 2.0 HID Ports, Push-Button & Hotkey Switching, TAA Compliant - OS Independent, Metal Housing
Share a mouse, keyboard, USB 5Gbps Hub, and 8K 60Hz DisplayPort between two DisplayPort enabled computers
• 8K 60HZ WITH HDR: Fast switch between two USB-A and DisplayPort-enabled desktops to share a keyboard, mouse, audio device, and a single 8K 60Hz DisplayPort monitor; DSC support required for maximum video performance; Supports MST Pass-through
• UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch works with any operating system including Windows, macOS, ChromeOS, and Linux; Compatible with all hardware platforms such as Intel and AMD; Supports ultrawide resolutions up to 5120x1440 60Hz
• MULTIPLE SWITCHING OPTIONS: Fast Switching via push-buttons or hotkeys with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer while controlling the other
• THOUGHTFUL DESIGN: Metal housing is durable and helps prevent Electro-magnetic Interference (EMI); Overcurrent Protection (OCP) prevents peripherals from overdrawing power, reducing the risk of damage to the KVM and attached USB devices
• TECHNICAL SPECIFICATIONS: KVM Switch is DisplayPort 1.4 compliant, supporting resolutions up to 8K 60Hz or 4K 144Hz, HDR10, HDCP 2.2/1.4, and DSC; Supports DisplayPort Audio and 3.5mm analog audio; USB 5Gbps Hub Ports; OS Independent
Share a mouse, keyboard, USB 5Gbps Hub, and 8K 60Hz DisplayPort between two DisplayPort enabled computers
• 8K 60HZ WITH HDR: Fast switch between two USB-A and DisplayPort-enabled desktops to share a keyboard, mouse, audio device, and a single 8K 60Hz DisplayPort monitor; DSC support required for maximum video performance; Supports MST Pass-through
• UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch works with any operating system including Windows, macOS, ChromeOS, and Linux; Compatible with all hardware platforms such as Intel and AMD; Supports ultrawide resolutions up to 5120x1440 60Hz
• MULTIPLE SWITCHING OPTIONS: Fast Switching via push-buttons or hotkeys with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer while controlling the other
• THOUGHTFUL DESIGN: Metal housing is durable and helps prevent Electro-magnetic Interference (EMI); Overcurrent Protection (OCP) prevents peripherals from overdrawing power, reducing the risk of damage to the KVM and attached USB devices
• TECHNICAL SPECIFICATIONS: KVM Switch is DisplayPort 1.4 compliant, supporting resolutions up to 8K 60Hz or 4K 144Hz, HDR10, HDCP 2.2/1.4, and DSC; Supports DisplayPort Audio and 3.5mm analog audio; USB 5Gbps Hub Ports; OS Independent
Art.nr: 19685
Beställningsvara (3-4 dagar)
{$antal} {$enhet} i fjärrlager
5 290 kr
Produktspecifikation
Anslutningar
| Antal datorer | 2 |
| Antal Displayportar | 2 |
| Antal USB-konsolportar | 6 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) Typ-B-portar | 2 |
| Hörlursutgångar | 3 |
| Konsolportar | 3,5 mm hörlur, DisplayPort, USB A |
| Likströmsingång | Ja |
| Ljudanslutningar | Ja |
| Mus porttyp | USB |
| Tangentbord anslutningstyp | USB |
| Video porttyp | DisplayPort |
Prestanda
| HD-typ | 8K Ultra HD |
| Maximal upplösning | 7680 x 4320 pixlar |
| Skanner intervall | 3,8,15,30 s |
| Seriekoppling (daisy chain) | Nej |
Design
| Material, hölje | Stål |
| Produktens färg | Svart |
| Rackmontering | Nej |
| Snabbknappar | Ja |
Display
| Inbyggd display | Nej |
Miljökrav
| Temperatur vid drift | 0 - 40 ° C |
| Intervall för relativ operativ luftfuktighet | 0 - 80% |
| Temperaturintervall (förvaring) | -20 - 60 ° C |
Strömtillförsel
| Strömförbrukning (vanlig) | 36 W |
| Utgångsspänning | 12 V |
Vikt & dimension
| Bredd | 100 mm |
| Djup | 160 mm |
| Vikt | 600 g |
| Höjd | 40 mm |
Fabrikat
| Tillverkare | StarTech.com |
| SKU | D86A2-2-PORT-8K-KVM |
| Produktlänk | https://www.startech.com/en-us/server-management/d86a2-2-port-8k-kvm |
