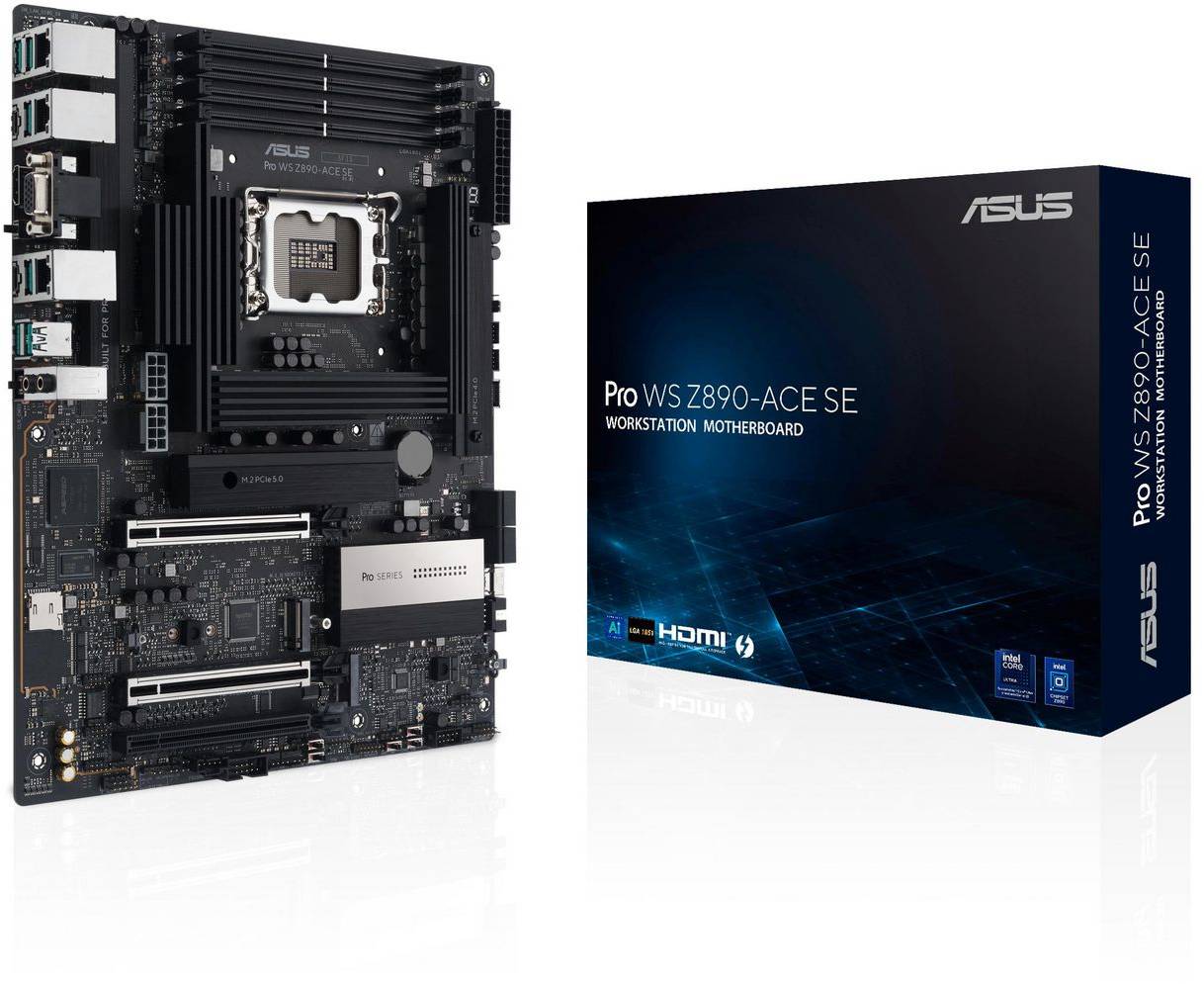

Asus PRO WS Z890-ACE SE, Intel LGA1851, 3xPCI Express, MicroATX, 4xDDR5, 4xM.2 + SATA3 RAID, VGA/HDMI/TB4, USB-C, 10GbE+2.5GbE LAN
ASUS 90MB1JC0-M0EAY0
Intel Z890 LGA1851 ATX workstation motherboard with PCIe® 5.0, DDR5 support, 10Gb & 2.5Gb Ethernet, four M.2 slots, plus a USB 20Gpbs front-panel connector and onboard BMC.
• Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA1851 socket:? Ready for Intel® Core™ Ultra 9, 7, and 5 desktop processors
• Robust performance:?16+2+1+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
• Future-proofed connectivity: Thunderbolt™ 4, 10Gb & 2.5Gb Ethernet, two PCIe®?5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header
• Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling II, AI Advisor and NPU boost
• DIY-friendly design:?PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Latch, BIOS?FlashBack™, Q-Connector
• Server-grade IPMI remote management and onboard BMC: Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
• Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA1851 socket:? Ready for Intel® Core™ Ultra 9, 7, and 5 desktop processors
• Robust performance:?16+2+1+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
• Future-proofed connectivity: Thunderbolt™ 4, 10Gb & 2.5Gb Ethernet, two PCIe®?5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header
• Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling II, AI Advisor and NPU boost
• DIY-friendly design:?PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Latch, BIOS?FlashBack™, Q-Connector
• Server-grade IPMI remote management and onboard BMC: Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
Art.nr: 19308
Beställningsvara (ber. 2025-10-30)
{$antal} {$enhet} i fjärrlager
7 390 kr
Produktspecifikation
Anslutningsmöjligheter
| Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar | 6 |
| Hörlursutgångar | 1 |
| Antal HDMI-portar | 1 |
| Antal Thunderbolt-portar | 1 |
| Antal LAN (RJ-45) anslutningar | 3 |
| Antal USB 3.2 Gen 2x2 typ C-portar | 1 |
Egenskaper
| Ljudutgångskanaler | 7.1 kanaler |
| Moderkort formfaktor | ATX |
| Moderkortets chipset | Intel Z890 |
| Ljudchipp | Realtek ALC1220P |
| Produktens färg | Svart |
Expansionsplatser
| PCI Express x16 (Gen 5.x) platser | 2 |
| PCI Express x16 (Gen 4.x) platser | 1 |
| Antal M.2 (M)-platser | 4 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
Grafiken
| Stöd för parallellprocessteknik | Stöds inte |
Internal I/O
| Antal anslutningar för fläktar | 5 |
| USB 2.0 anslutning | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar | 1 |
| Thunderbolt-anslutningar | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar | 0 |
| Antal SATA III kontakter | 4 |
| USB 3.2 Gen 2x2-anslutningar | 1 |
| Antalet COM-anslutningar | 1 |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 2 |
Minne
| Antal minnesplatser | 4 |
| Maximalt internminne | 256 GB |
| Minnestyper som stöds | DDR5-SDRAM |
| Minneskanaler | Dubbla kanaler |
Nätverk
| Typ av ethernet-gränssnitt | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | Nej |
Processor
| Processorsockel | LGA 1851 (Socket V1) |
| Processortillverkare | Intel |
Lagringskontroll
| Lagringsenhetsgränssnitt som stöds | M.2, PCI Express 5.0, SATA III |
| Antal lagringsenheter som stöds | 8 |
| RAID-nivåer | 0, 1, 5, 10 |
| Antalet hårddiskar som stöds | 4 |
| RAID-stöd | Ja |
Vikt & dimension
| Bredd | 305 mm |
| Djup | 244 mm |
Fabrikat
| Tillverkare | ASUS |
| SKU | 90MB1JC0-M0EAY0 |
| Produktlänk | https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-z890-ace-se/ |
